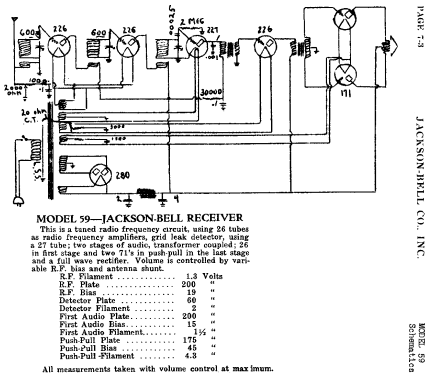

Jackson-Bell Co. pre: 59 [Radio] ID = 2336713 1400x1502
Select picture or schematic to display from thumbnails on the right and click for download.
For model 59, Jackson-Bell Co. (pre 1935); Los Angeles

Country:  United States of America (USA)
Manufacturer / Brand:  Jackson-Bell Co. (pre 1935); Los Angeles
Year: 1929 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 226 226 227 226 171 171 280
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 59 - Jackson-Bell Co. pre 1935; Los
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes Push-pull af outout stage.
Price in first year of sale 59.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
