For model 62 2nd series, Jackson-Bell Co. (pre 1935); Los Angeles:
All original finish, knobs, and grill cloth.

Country:  United States of America (USA)
Manufacturer / Brand:  Jackson-Bell Co. (pre 1935); Los Angeles
Year: 1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 224 224 224 224 245 280
Main principle TRF without regeneration; Screengrid 1926-1935
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 62 [2nd series] - Jackson-Bell Co. pre 1935; Los
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Source of data Collector's Guide to Antique Radios (7th Edition)

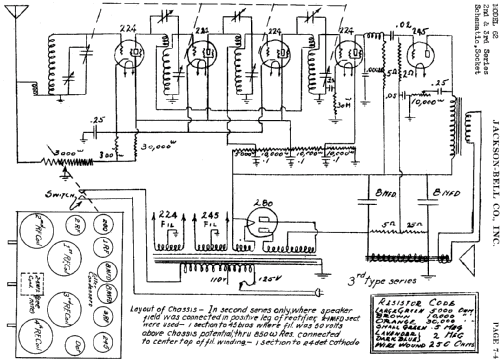

Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in Radio Collector`s Guide 1921-1932
Literature/Schematics (1) Grinder

Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
