- Country
- United States of America (USA)
- Manufacturer / Brand
- Jackson Industries
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 45163

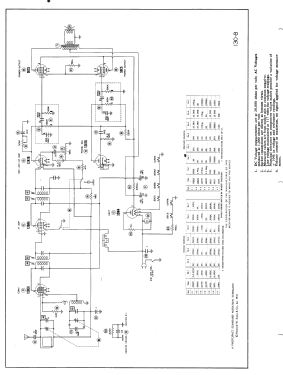

Click on the schematic thumbnail to request the schematic as a free document.

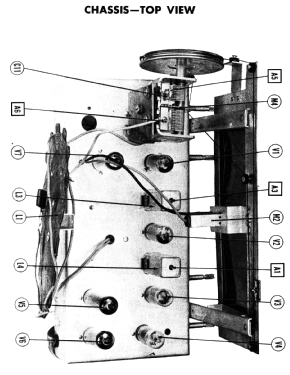

- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.25 inch = 23.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 150 - Jackson Industries
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Jackson model 150 is an AC operated radio-phonograph combination superheterodyne receiver with loop antenna.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 21, Copyright 1950
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 130, folder 8, dated 4-51)
