Rexonola No. 45 Prismaphonic Gramophone

Jackson & MacDonald (Rexonola); Sydney

  • Year
  • 1928–1932
  • Category
  • Talking machine - Mechanical Gramophone/Phonograph
  • Radiomuseum.org ID
  • 270138

 Technical Specifications

  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Solar- and/or muscle driven, also addl. power jack possible
  • Loudspeaker
  • Horn
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Rexonola No. 45 Prismaphonic Gramophone - Jackson & MacDonald Rexonola;
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 22 x 21 x 37 inch / 559 x 533 x 940 mm
  • Notes
  • The Rexonola No. 45 Prismaphonic was introduced in 1928-9 and remained on sale until 1932; see illustrated newspaper advertisement from 1932 showing it still for sale at significantly reduced price along with other then current Rexonola Prismaphonic models.

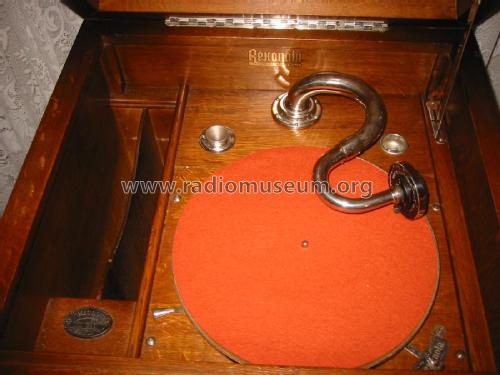

    The Rexonola Prismaphonic No. 45 comprises a Swiss made Rexonola (Thorens) double spring motor, a Rexophonic speaker (see advertisement) and Rexonola's patented Prismatic timber (wooden) sound chamber rather than a metal horn. Rexonola Prismaphonics gave sound reproduction of exceptional clarity and fidelity.

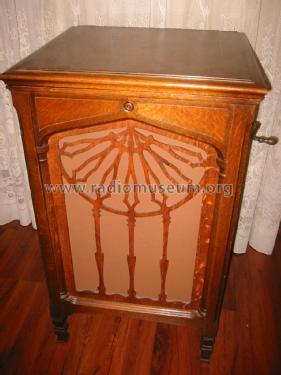

    The cabinet for the Rexonola No. 45 Prismaphonic is made of Oak and finished in "Mission Oak shade" using a Nitro-Cellulose Lacquer. Rexonola cabinets were manufactured in Sydney NSW Australia. Note the model badge which bears the patent details as well as model number, this model as with other Rexonola Prismaphonics came with a special Rexonola Prismaphonic non spill used needle receptacle and a Rexonola, Prismaphonic speed regulator escutcheon. This model's cabinet has a different fretwork than the regular Rexonola Prismaphonics and is quite attractive.

  • Price in first year of sale
  • 15.00 AU Pounds
  • Author
  • Model page created by Barry Poor. See "Data change" for further contributors.
