Vocaphon Baby

Vocaphon Baby ; Jacobi; Radio-, (ID = 52262) Crystal Vocaphon Baby ; Jacobi; Radio-, (ID = 59546) Crystal
Vocaphon Baby ; Jacobi; Radio-, (ID = 73175) Crystal Vocaphon Baby ; Jacobi; Radio-, (ID = 26633) Crystal
Vocaphon Baby ; Jacobi; Radio-, (ID = 164839) Crystal Vocaphon Baby ; Jacobi; Radio-, (ID = 164841) Crystal
Vocaphon Baby ; Jacobi; Radio-, (ID = 1489589) Crystal Vocaphon Baby ; Jacobi; Radio-, (ID = 1489590) Crystal
Vocaphon Baby ; Jacobi; Radio-, (ID = 1489591) Crystal Vocaphon Baby ; Jacobi; Radio-, (ID = 1489592) Crystal
Use red slider bar for more.

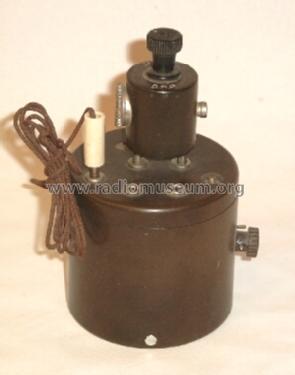

Vocaphon Baby ; Jacobi; Radio-, (ID = 52262) Crystal
Jacobi; Radio-,: Vocaphon Baby [Crystal] ID = 52262 300x381
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vocaphon Baby, Jacobi; Radio-, Telegraphen- und Telephonwerke H. Jacobi & Co.; Wien

Country:  Austria
Manufacturer / Brand:  Jacobi; Radio-, Telegraphen- und Telephonwerke H. Jacobi & Co.; Wien
alternative name

Vocaphon-Radio-Vertriebsgesellschaft
Year: 1924–1927 Category: Detector-Radio (Crystal or diode, without tubes/transistors)
Main principle Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Vocaphon Baby - Jacobi; Radio-, Telegraphen-
Material Bakelite case
Dimensions (WHD) 93 x 130 x 93 mm / 3.7 x 5.1 x 3.7 inch
Notes "Lichtnetzempfänger" (Lichtnetz als Antenne und Erde); Dosenform.
Price in first year of sale 25.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Radiowelt, Wien (RW, 51) (2442)
Literature/Schematics (1) RADIOBOTE, Österr. (Heft 29/2010, S.11 ff, Gerätebeschreibung)
Literature/Schematics (2) RADIOBOTE, Österr.


All listed radios etc. from Jacobi; Radio-, Telegraphen- und Telephonwerke H. Jacobi & Co.; Wien
Here you find 52 models, 32 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
