12 Transistor J1212

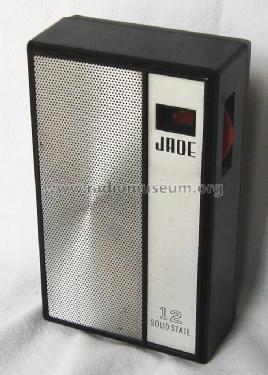

Jade Recoton Corp.;: 12 Transistor J1212 [Radio] ID = 2245496 733x1024
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1965 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 12: |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Dry Batteries / 1 x 9 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: 12 Transistor J1212 - Jade Recoton Corp.; Long |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 3 x 4.5 x 1.5 inch / 76 x 114 x 38 mm |

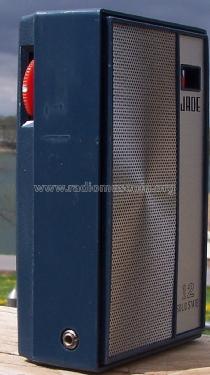

| Notes | Jade AM Portable Pocket Radio Model 12 Transistor J1212. Different colors known. |
| Source of data | -- Collector info (Sammler) |
Model page created by a member from A. See "Data change" for further contributors.
