For model J-1188, Jade (Recoton Corp.); Long Island City, NY:

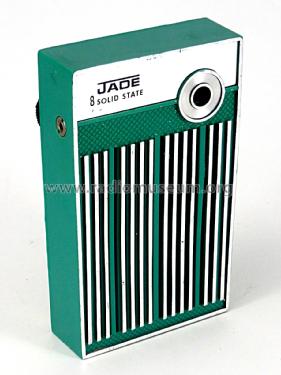

Front view swiveled left

Country:  United States of America (USA)
Manufacturer / Brand:  Jade (Recoton Corp.); Long Island City, NY
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out
from Radiomuseum.org Model: J-1188 - Jade Recoton Corp.; Long
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 66 x 112 x 32 mm / 2.6 x 4.4 x 1.3 inch
Notes

Jade J-1188 transistor radio with carrying case.
Various cabinet colors known. Gross weight incl. full packing 0.250 Kg.

Made in Hong Kong

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Literature/Schematics (1) Collector's Guide To TrR1 Bunis trans.94 (Model info on page 132; No date of manufacture given)

Model page created by Eckhard Wegner. See "Data change" for further contributors.
