Captain Deluxe D - 8 Transistor W 178 (Japan 902)

Captain Deluxe D - 8 Transistor W 178 ; Yashima Electric (ID = 898327) Radio

Captain Deluxe D - 8 Transistor W 178 ; Yashima Electric (ID = 898342) Radio
Captain Deluxe D - 8 Transistor W 178 ; Yashima Electric (ID = 807512) Radio Captain Deluxe D - 8 Transistor W 178 ; Yashima Electric (ID = 807511) Radio
Captain Deluxe D - 8 Transistor W 178 ; Yashima Electric (ID = 1293031) Radio
Use red slider bar for more.
Captain Deluxe D - 8 Transistor W 178 ; Yashima Electric (ID = 807512) Radio
Yashima Electric: Captain Deluxe D - 8 Transistor W 178 [Radio] ID = 807512 580x417
Select picture or schematic to display from thumbnails on the right and click for download.
For model Captain Deluxe D - 8 Transistor W 178 (Japan 902), Yashima Electric Industrial Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Yashima Electric Industrial Co., Ltd.; Tokyo
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SA53 2SA53 2SA53 2SA53 2SB54 2SB54 2SB56 2SB56 1N60
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out
from Radiomuseum.org Model: Captain Deluxe D - 8 Transistor W 178 - Yashima Electric Industrial Co
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 137 x 80 x 38 mm / 5.4 x 3.1 x 1.5 inch
Notes

Similar models listed here

Made in Japan 902

Net weight (2.2 lb = 1 kg) 0.250 kg / 0 lb 8.8 oz (0.551 lb)

Model page created by Werner Wussow. See "Data change" for further contributors.



All listed radios etc. from Yashima Electric Industrial Co., Ltd.; Tokyo
Here you find 19 models, 18 with images and 7 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.



Collection of a member from A




Forum contributions about this model
Yashima Electric: Captain Deluxe D - 8 Transistor W 178
Threads: 1 | Posts: 1
Hits: 873     Replies: 0
yashima: Yashima Captain Deluxe D - 8 Transistor W 178 (Japan 902)
Rudolf Nemeth
08.Aug.17
  1

Yashima Captain Deluxe D - 8 Transistor W 178 (Japan 902)

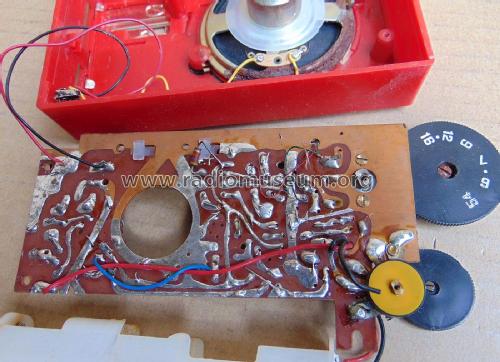

Auf dem Innenleben Bild ist die Variante mit 1 ZF Stufe weniger mit 5 bzw. 6 Transistoren, nicht die 8 Transistor Variante.
