Intercontinental PU-608A-01
Javelin Electronics; London, Wembley
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Javelin Electronics; London, Wembley
- Year
- 1972 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 330600

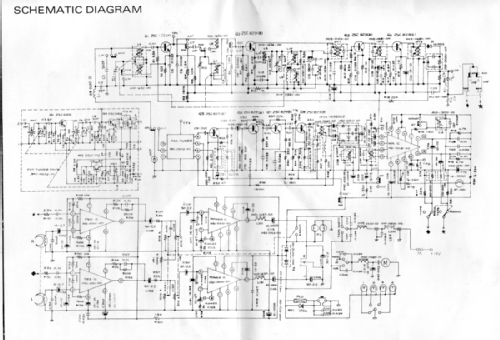

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Special Tape or Cassette-Format
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Intercontinental PU-608A-01 - Javelin Electronics; London,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 180 x 180 x 54 mm / 7.1 x 7.1 x 2.1 inch
- Notes
-
The Intercontinental is a MW/LW/FM stereo car radio with an 8-track stereo tape player.
The unit operates in stereo on FM and the 8-track player.
Output is over 4W x 2 channels.Manufactured in Japan for Javelin UK
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
- Price in first year of sale
- 79.00 £
- Source of data
- - - Manufacturers Literature
- Mentioned in
- -- Original prospect or advert
