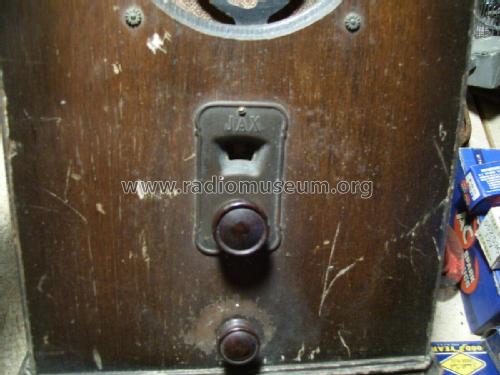

Unknown 4-tube Cathedral
JAX; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- JAX; Los Angeles, CA
- Year
- 1931 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 328277
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF without regeneration
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Unknown 4-tube Cathedral - JAX; Los Angeles, CA
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 10.5 x 14.5 x 7.75 inch / 267 x 368 x 197 mm
- Author
- Model page created by Rodney Boleyn. See "Data change" for further contributors.
