Transistor 7 JT-G 204
Jefferson Travis Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Jefferson Travis Corp.; New York, NY
- Year
- 1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 163880

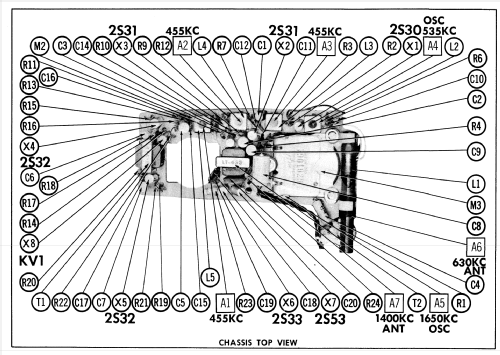

Photofact Folder
By Courtesy Of Ebay-User: dts-bay
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Transistor 7 JT-G 204 - Jefferson Travis Corp.; New
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 4 x 5.5 x 1.25 inch / 102 x 140 x 32 mm
- Notes
-
Jefferson Travis Pocket AM Radio Model JT-G 204.
Leather Carrying Case, Kick Stand.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS ((Set 521;Folder 10; Date 3-61))
- Author
- Model page created by Albert Weiss. See "Data change" for further contributors.
