Concerto HiFi Dual Speaker High Fidelity Stereo-Matic Sound LL21552

JIL (J.I.L.) Canada Ltd. (Jutan International Ltd.); Toronto

Data
Forum
Pictures
Collections

  • Year
  • 1969 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 208678
    • alternative name: Jutan Importers Limited

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • AC/DC-set / AC: 50-60 Hz, 117V = 105-120 or DC: 105-120 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Concerto HiFi Dual Speaker High Fidelity Stereo-Matic Sound LL21552 - JIL J.I.L. Canada Ltd. Jutan
  • Shape
  • Tablemodel, low profile (big size).
  • Notes

  • JIL Concerto​ HiFi Dual Speaker High Fidelity Stereo-Matic Sound model LL21552.

    • FM with AFC—AM radio.
    • 2 speakers in parallel (mono).

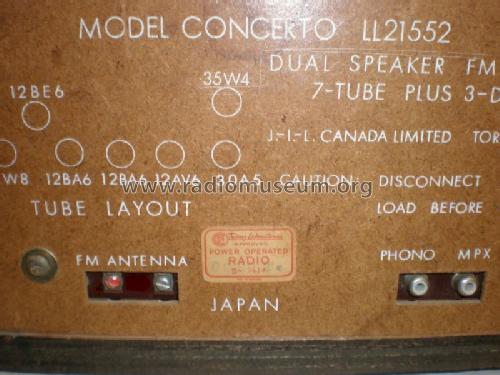

    • 7 tubes, 3 diodes.

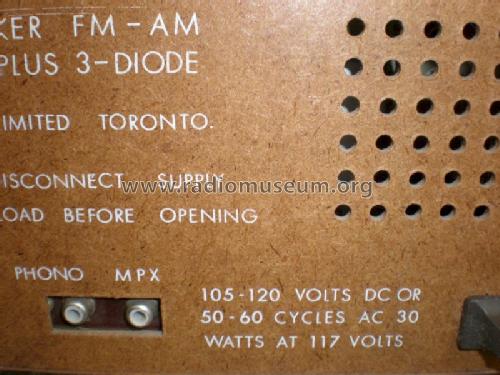

    • Phono RCA jack input (mono) on the rear.
    • MPX RCA jack output on the rear. No stereo decoder!

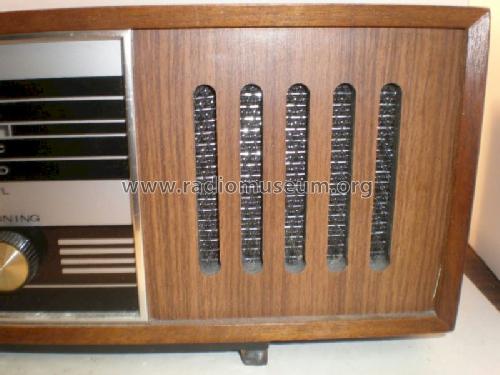

    • The cabinet has a walnut finish.
    • Power consumption is 30 W at 117 V.

    Closest model is the Commodore 744A that has 4 speakers.

    See Commodore 740 for the list of similar models.

    Made in Japan

  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
