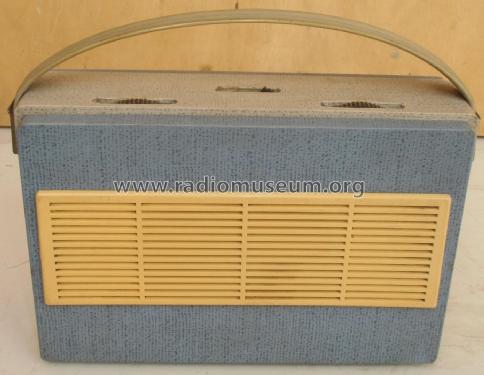

Jiskra, Výrobní: Radieta [Kit] ID = 2599589 1392x1077
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1962 | Category: Kit (Parts plus instruction) or building instructions only | ||||
| Semiconductors (the count is only for transistors) | 5: |
|---|
| Main principle | TRF (Tuned-Radio-Frequency but use of regeneration unknown) |
|---|---|
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Dry Batteries / 9 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Radieta - Jiskra, Výrobní Družstvo |
| Material | Leather / canvas / plastic - over other material |
| Shape | Portable set > 8 inch (also usable without mains) |
| Notes | Transistoren: 156NU70, 2× 106NU70, 2× 104NU71, Diode: 1NN41. |
| Price in first year of sale | 320.00 Kcs |
| Source of data | -- Collector info (Sammler) |
Model page created by Wolfgang Lill. See "Data change" for further contributors.
