Electronic Antenna Switch T-R Switch

Electronic Antenna Switch T-R Switch; Johnson Company, E.F (ID = 1182004) Amateur-D
Electronic Antenna Switch T-R Switch; Johnson Company, E.F (ID = 605232) Amateur-D
Use red slider bar for more.
Electronic Antenna Switch T-R Switch; Johnson Company, E.F (ID = 605232) Amateur-D

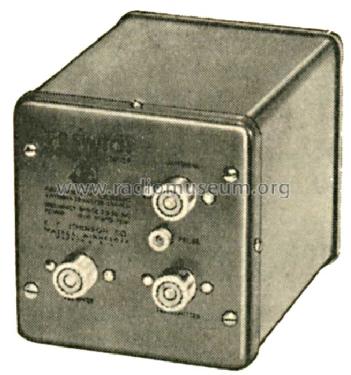

Johnson Company, E.F: Electronic Antenna Switch T-R Switch [Amateur-D] ID = 605232 656x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Electronic Antenna Switch T-R Switch, Johnson Company, E.F.; Waseca, MN:
Quelle: Bauer-Katalog, Bamberg, 1968

Country:  United States of America (USA)
Manufacturer / Brand:  Johnson Company, E.F.; Waseca, MN
Brand

Viking
Year: 1968 ? Category: Amateur Equipment (Other, but not Key)
Valves / Tubes 1: 6BL7
Main principle Radio Frequency Amplification only
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Electronic Antenna Switch T-R Switch - Johnson Company, E.F.; Waseca,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 110 x 110 x 135 mm / 4.3 x 4.3 x 5.3 inch
Notes Frequency range: 3...30 MHz
6dB @3,5MHz; 2dB @30MHz
Power: AM: max 1kW; SSB: max 4kW PEP
Preis in D: 165,--DM
Literature/Schematics (1) Bauer-Katalog, Bamberg, 1968

Model page created by a member from D. See "Data change" for further contributors.
