Viking Courier 240-352-1 or 240-352-2

Viking Courier 240-352-1 or 240-352-2; Johnson Company, E.F (ID = 1246522) Amateur-T
Viking Courier 240-352-1 or 240-352-2; Johnson Company, E.F (ID = 1207999) Amateur-T Viking Courier 240-352-1 or 240-352-2; Johnson Company, E.F (ID = 1208000) Amateur-T
Viking Courier 240-352-1 or 240-352-2; Johnson Company, E.F (ID = 1208001) Amateur-T Viking Courier 240-352-1 or 240-352-2; Johnson Company, E.F (ID = 1208002) Amateur-T
Viking Courier 240-352-1 or 240-352-2; Johnson Company, E.F (ID = 1208003) Amateur-T Viking Courier 240-352-1 or 240-352-2; Johnson Company, E.F (ID = 1208004) Amateur-T
Use red slider bar for more.
Viking Courier 240-352-1 or 240-352-2; Johnson Company, E.F (ID = 1207999) Amateur-T
Johnson Company, E.F: Viking Courier 240-352-1 or 240-352-2 [Amateur-T] ID = 1207999 2478x1812

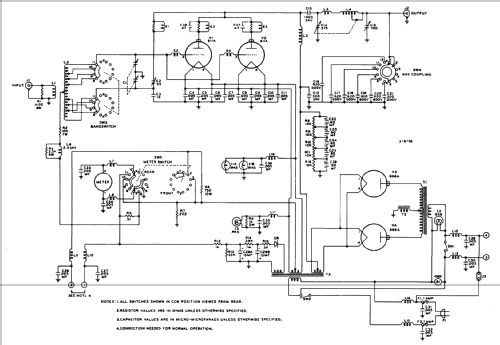

Select picture or schematic to display from thumbnails on the right and click for download.
For model Viking Courier 240-352-1 or 240-352-2, Johnson Company, E.F.; Waseca, MN

Country:  United States of America (USA)
Manufacturer / Brand:  Johnson Company, E.F.; Waseca, MN
Brand

Viking
Year: 1957 ? Category: Amateur Transmitter (only)

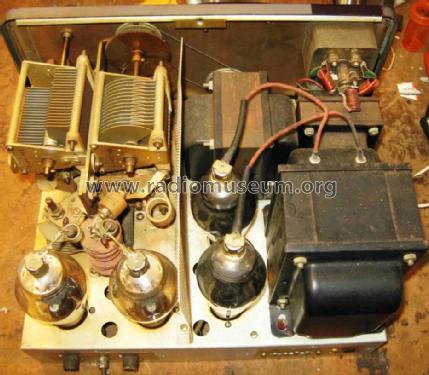

Valves / Tubes 4: 811A 811A 866A 866A
Main principle Transmitter
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Viking Courier 240-352-1 or 240-352-2 - Johnson Company, E.F.; Waseca,
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 15.5 x 9.5 x 14 inch / 394 x 241 x 356 mm
Notes Johnson Viking Courier Cat. No. 240-352-1 (Kit) or 240-352-2 (Wired & tested);
Drive requirements are 5 to 35 watts.
Frequency Range: 3.5 to 30 MHz
Bands:
3.5 - 7 MHz
7 - 14 MHz
14 - 21 MHz
21 - 30 MHz
40 - 600 ohm antenna load
MODE Plate Pwr Input Watts
CW Class C or B 500
AM LINEAR (DSB w/ carrier) 200
SSB - DSB 500 pp
Net weight (2.2 lb = 1 kg) 58 lb (58 lb 0 oz) / 26.332 kg
Price in first year of sale 289.00 $
Source of data -- Original-techn. papers.

Model page created by Paul E. Pinyot † 2013. See "Data change" for further contributors.
