Antenna Coupler NFG-170

Antenna Coupler NFG-170; JRC Japan Radio Co., (ID = 1962845) Antenna Antenna Coupler NFG-170; JRC Japan Radio Co., (ID = 1962846) Antenna
Antenna Coupler NFG-170; JRC Japan Radio Co., (ID = 1962847) Antenna Antenna Coupler NFG-170; JRC Japan Radio Co., (ID = 1962848) Antenna
Use red slider bar for more.
Antenna Coupler NFG-170; JRC Japan Radio Co., (ID = 1962845) Antenna

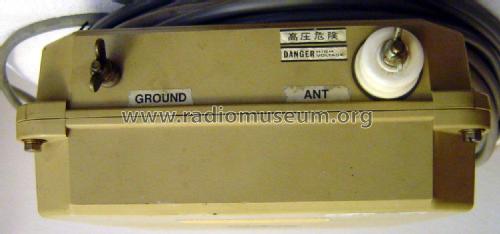

JRC Japan Radio Co.,: Antenna Coupler NFG-170 [Antenna] ID = 1962845 843x1365
Select picture or schematic to display from thumbnails on the right and click for download.
For model Antenna Coupler NFG-170, JRC Japan Radio Co., Ltd.; Tokyo:
Photo by courtesy of R.Pavlic

Country:  Japan
Manufacturer / Brand:  JRC Japan Radio Co., Ltd.; Tokyo
Year: 1985 ?? Category: Antenna (Aerial) or Coupler
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle RF-Circuit or wave trap (separate, can also be an antenna with amp.)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Powered by external power supply or a main unit. / 12/24 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Antenna Coupler NFG-170 - JRC Japan Radio Co., Ltd.;
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 230 x 380 x 90 mm / 9.1 x 15 x 3.5 inch
Notes

Fully automatic antenna tuner for dipoles and long wires. Useable between 1.2MHz...30MHz. It can handle 200W PEP:


Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
