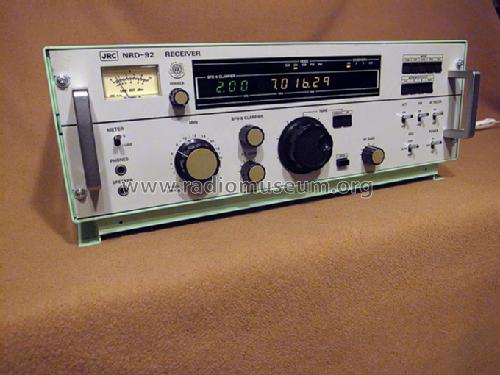

For model NRD-92, JRC Japan Radio Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  JRC Japan Radio Co., Ltd.; Tokyo
Year: 1984 ?? Category: Commercial Receiver (may include amateur bands)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion; ZF/IF 70455/455 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100; 110; 115; 220; 230 / DC 24 Volt
Loudspeaker - This model requires external speaker(s).
Power out 1 W (unknown quality)
from Radiomuseum.org Model: NRD-92 - JRC Japan Radio Co., Ltd.;
Material Metal case
Shape Rack
Dimensions (WHD) 480 x 149 x 294 mm / 18.9 x 5.9 x 11.6 inch
Notes

90 kHz bis 29.99999 MHz
IF1: 70.455 MHz
IF2: 455 kHz
CW, MCW, DSB, SSB, FSK

Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Jia Lun LU. See "Data change" for further contributors.
