Röhrenprüfgerät RPG III/45
Use red slider bar for more.

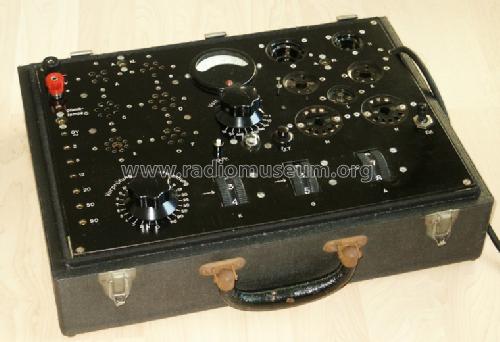

Junker, Joseph, GmbH: Röhrenprüfgerät RPG III/45 [Equipment] ID = 147815 760x520
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1945 ?? | Category: Service- or Lab Equipment |
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 220 Volt |
| Loudspeaker | - - No sound reproduction output. |
| Power out | |
| from Radiomuseum.org | Model: Röhrenprüfgerät RPG III/45 - Junker, Joseph, GmbH; Berlin, |
| Material | Wooden case |

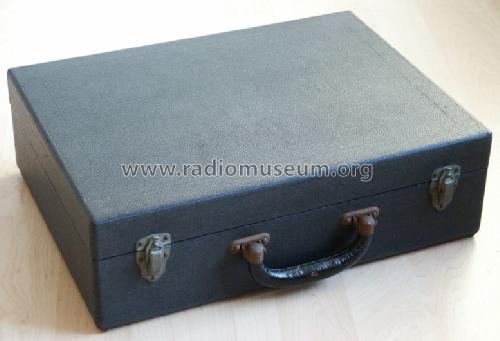

| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 380 x 110 x 280 mm / 15 x 4.3 x 11 inch |
| Notes | Röhrenprüfgerät in Koffer-Ausführung mit der Möglichkeit der Messung von Gleichspannung, Gleichstrom, Widerstand, Prüfung von Glimmlampen. |
| Net weight (2.2 lb = 1 kg) | 6 kg / 13 lb 3.5 oz (13.216 lb) |
| Source of data | Radiokatalog Band 2, Ernst Erb |
Model page created by a member from D. See "Data change" for further contributors.
