- Country
- Japan
- Manufacturer / Brand
- JVC - Victor Company of Japan, Ltd.; Tokyo
- Year
- 1968
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 171171
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
- Power out
- 0.25 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

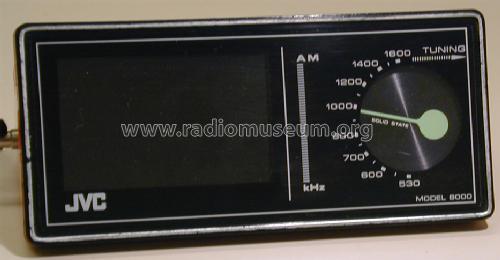

- Model: 8000 - JVC - Victor Company of Japan,
- Shape
- Design Radio or Novelty / Gadget - fancy or unusual shape.
- Dimensions (WHD)
- 6 x 2 x 2 inch / 152 x 51 x 51 mm
- Notes
- Gehäuse ABS oder High Impact. Form des Radios dreieckig. In das Feld neben der Skala können Bilder (Familienbilder) eingeschoben werden und sind hinter dem Skalenglas gesichert. Ferrit core antenna. Weight gross including full packing. With the color printed gift box JVC was advertising the units cabinet color packed inside.
- Net weight (2.2 lb = 1 kg)
- 0.320 kg / 0 lb 11.3 oz (0.705 lb)
- Author
- Model page created by Eckhard Wegner. See "Data change" for further contributors.
