• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 2001 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 332572

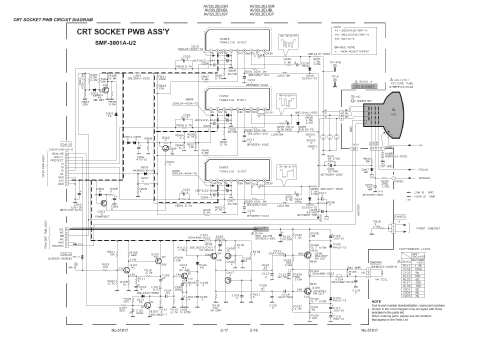

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• W76ERF041X044

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Colour Television AV32L2EUGR - JVC - Victor Company of Japan,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 900 x 550 x 560 mm / 35.4 x 21.7 x 22 inch

• Notes

• TV color, pantalla CRT plana 32"

  Conexiones traseras: Antena; 2x RGB; 3 Euroconectores

  Made in UK

• Author
• Model page created by Josh Toreno. See "Data change" for further contributors.
