Compact Disc Player XL-V120BK

Compact Disc Player XL-V120BK; JVC - Victor Company (ID = 2519928) R-Player Compact Disc Player XL-V120BK; JVC - Victor Company (ID = 2519931) R-Player
Compact Disc Player XL-V120BK; JVC - Victor Company (ID = 2519929) R-Player Compact Disc Player XL-V120BK; JVC - Victor Company (ID = 2519930) R-Player
Compact Disc Player XL-V120BK; JVC - Victor Company (ID = 2520547) R-Player Compact Disc Player XL-V120BK; JVC - Victor Company (ID = 2520548) R-Player
Use red slider bar for more.

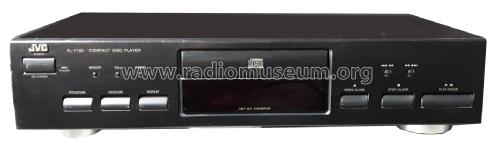

Compact Disc Player XL-V120BK; JVC - Victor Company (ID = 2519928) R-Player
JVC - Victor Company: Compact Disc Player XL-V120BK [R-Player] ID = 2519928 1400x410
Select picture or schematic to display from thumbnails on the right and click for download.
For model Compact Disc Player XL-V120BK, JVC - Victor Company of Japan, Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  JVC - Victor Company of Japan, Ltd.; Tokyo
Year: 1996 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details CD-Player, -Writer, MD, MOD (audio); Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Compact Disc Player XL-V120BK - JVC - Victor Company of Japan,
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 435 x 103 x 275 mm / 17.1 x 4.1 x 10.8 inch
Notes

Compact disc player, 2 channels

  • Frequency Response: 2 - 20,000 Hz
  • Dynamic Range:  > 95 dB (1 KHz)
  • Signal to Noise Ratio: 100 dB (at digital 0)
  • Total Harmonic Distortion: 0.006% (1 kHz).

Made in Singapore

Net weight (2.2 lb = 1 kg) 3.3 kg / 7 lb 4.3 oz (7.269 lb)
Mentioned in -- Original-techn. papers. (Service manual 9608 (V))

Model page created by Hendrik van Hooijdonk. See "Data change" for further contributors.
