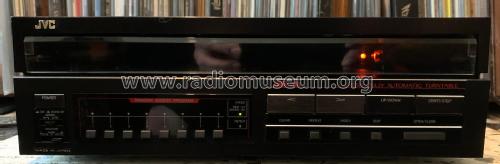

Fully Automatic Turntable L-E50 B

JVC - Victor Company of Japan, Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1984 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 320506

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Fully Automatic Turntable L-E50 B - JVC - Victor Company of Japan,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 340 x 108 x 356 mm / 13.4 x 4.3 x 14 inch
  • Notes

  • Drive Motor: DC servomotor
    Drive System: Belt Drive
    Speeds: 33-1/3 RPM and 45 RPM
    Wow and Flutter: 0.07%
    S/N Ratio: 70 dB (DIN-B)
    Tonearm: linear tracking statically balanced low-mass straight arm
    Effective Length: 105mm
    Tracking Error: +15'
    Cartridge: MD-1045
    Frequency Response: 20 Hz-25 kHz
    Output: 2.5 mV (1 kHz 50 mm/s)
    Channel Separation: 25 dB/1 kHz
    Load Impedance: 47 kOhms
    Track ability: 70 µm at 315 Hz
    Stylus: 0.6 mil conical stylus (diamond)
    Stylus replacement: DT-45
    Tracking Force: 1.25g



  • Net weight (2.2 lb = 1 kg)
  • 7.8 kg / 17 lb 2.9 oz (17.181 lb)
  • Author
  • Model page created by Bartosz Szwed. See "Data change" for further contributors.
