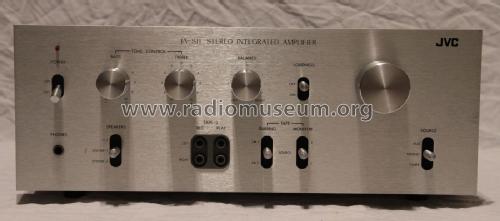

Stereo Integrated Amplifier JA-S11
JVC - Victor Company of Japan, Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- JVC - Victor Company of Japan, Ltd.; Tokyo
- Year
- 1976 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 148661

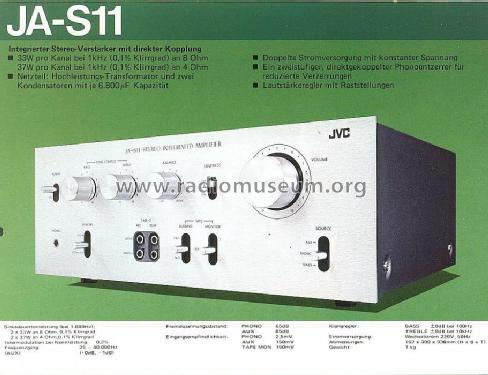

Original Prospekt
Prospekt

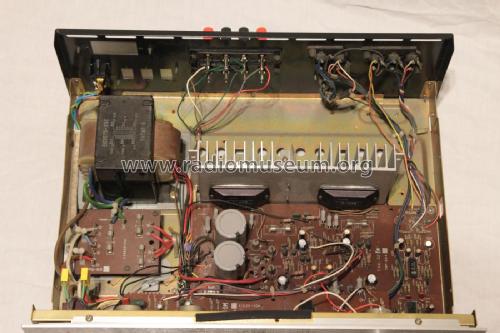

- Number of Transistors
- 11
- Semiconductors
- 2SC1775 2SC1775 2SC1775 2SC1775 2SA872 2SA872 2SB560 2SB560 2SC1775 2SC1775 2SD438 S-40W S-40W
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 66 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereo Integrated Amplifier JA-S11 - JVC - Victor Company of Japan,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 390 x 152 x 330 mm / 15.4 x 6 x 13 inch
- Notes
-
Integrierter Stereo-Verstärker mit direkter Kopplung und 2 x 37 Watt Sinus an 4 Ohm.
Output Power (both channel driven) - 30 W RMS per channel into 8 Ohms 20Hz-20kHz no more than 0.1% total harmonic distortion 33 W per channel into 8 Ohms at 1kHz THD=0.1% Total Harmonic Distortion (at 30W) - 0.05% 1kHz (both channel driven) Intermodulation distortion - 0.1% at rated output Load impedance - 4-16 Ohms (System1 or System2), 8-16 Ohms (System1 + System2) Damping Factor - more than 30 at 8 Ohms (20Hz-20kHz) Pre-amplifier Section: Input Sensitivity/Impedance - Phono 2.5mV/47 Ohm AUX, Tuner, Tape Play 150mV/50 Ohm Output level - Tape REC 150mV DIN REC 30mV Phono Equalizer Deviation - +/- 0.5dB from RIAA curve (25Hz-15kHz) Phono Overload - 150V (RMS) at 1kHz 420mV (P-P)
Signal to Noise Ratio - Phono 65dB (RMS) AUX 85dB (RMS Frequency Response - AUX, Tuner, Tape Play - 40kHz +0/-1B Loudness Control +6dB at 100Hz Tone controls - Bass +/- 8dB at 100Hz Treble +/- 8dB at 100Hz Power consumption AC 240V/50Hz UK-300 Watts
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- Source of data
- -- Original prospect or advert
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
