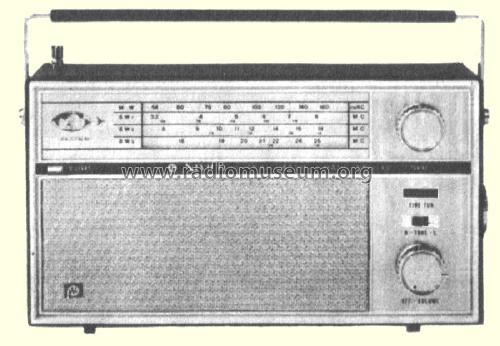

Nivico 10 Transistor 4-Band Portable Radio 10H-407
JVC - Victor Company of Japan, Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- JVC - Victor Company of Japan, Ltd.; Tokyo
- Year
- 1967–1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 319923
J.R. Transistor Handbook.
- Number of Transistors
- 10
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Batteries / addl. power jack / D: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Nivico 10 Transistor 4-Band Portable Radio 10H-407 - JVC - Victor Company of Japan,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 11.625 x 6.75 x 3.375 inch / 295 x 171 x 86 mm
- Notes
-
Frequency Range:
MW 540 - 1600 kHz
SW1 3.2 - 8 MHz
SW2 8 - 18 MHz
SW3 3 - 18 MHz
- Net weight (2.2 lb = 1 kg)
- 4 lb 4 oz (4.25 lb) / 1.930 kg
- Price in first year of sale
- 79.95 AUS $
- Mentioned in
- Mingay's Price Service (Aug 1967 to Feb 1969.)
- Literature/Schematics (1)
- -- Original-techn. papers. (JVC Nivico Service Note No. 1112.)
- Literature/Schematics (2)
- J.R. Publications Transistor Radio Service Handbook (Group C5, 1968, Page 226.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
