Nivico 4TR-990A With ARC-11N changer

JVC - Victor Company of Japan, Ltd.; Tokyo

Dati
Forum
Immagini
Collezioni

  • Anno
  • 1969–1972
  • Categoria
  • Radio (o sintonizzatore del dopoguerra WW2)
  • Radiomuseum.org ID
  • 319998

 Specifiche tecniche

  • Numero di transistor
  • 24
  • Principio generale
  • Supereterodina (in generale); ZF/IF 455 kHz
  • Gamme d'onda
  • Onde medie (OM), corte (OC) e FM.
  • Particolarità
  • Cambiadischi+Registr. a nastro
  • Tensioni di funzionamento
  • Alimentazione a corrente alternata (CA) / 100/115/210/235 Volt
  • Altoparlante
  • AP magnetodinamico (magnete permanente e bobina mobile)
  • Materiali
  • Mobile in legno
  • Radiomuseum.org
  • Modello: Nivico 4TR-990A [With ARC-11N changer] - JVC - Victor Company of Japan,
  • Forma
  • Console di qualsiasi tipo
  • Dimensioni (LxAxP)
  • 48.5 x 27.875 x 15.625 inch / 1232 x 708 x 397 mm
  • Annotazioni

  • Nivico Model 4TR-990A

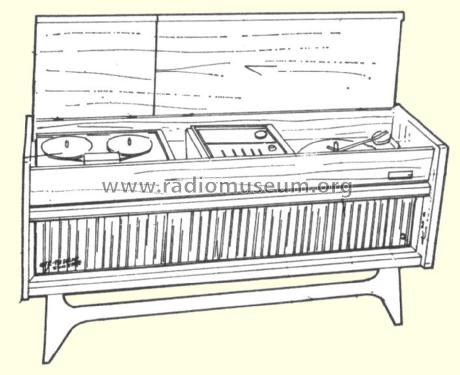

    A console stereo phonograph with MW/SW/FM stereo radio and 4-track tape recorder.

    Features: 24 transistors including three Field Effect Transistors (FET) and 14 diodes combine to give power output of 23 watt per channel and 30 to 20,000 Hz in frequency response.

    Four-speed stereo changer with 10" platter and a light tracking tone arm equipped with a solid-state cartridge and diamond stylus. Full recording and playback versatilty is possible through the 4-track, 2-speed (7½ and 3¾ ips) tape recorder which has a wow and flutter figure less than 0.15% at 7½ ips.

    Two way speaker system with external speaker selection. Two 8" speakers, two 3½ " speakers. Professional graphic controls for bass, treble, left and right volume, and echo functions with echo indicators. (FROM MINGAY'S PRICE SERVICE)

  • Peso netto
  • 102 lb 0 oz (102 lb) / 46.308 kg
  • Prezzo nel primo anno
  • 795.00 AUS $
  • Autore
  • Modello inviato da Martin Kent. Utilizzare "Proponi modifica" per inviare ulteriori dati.
