Nivico 6 Band Transistor Radio FA 6000

Nivico 6 Band Transistor Radio FA 6000; JVC - Victor Company (ID = 1684652) Radio

Nivico 6 Band Transistor Radio FA 6000; JVC - Victor Company (ID = 2555769) Radio

Nivico 6 Band Transistor Radio FA 6000; JVC - Victor Company (ID = 2555770) Radio

Nivico 6 Band Transistor Radio FA 6000; JVC - Victor Company (ID = 2555771) Radio

Nivico 6 Band Transistor Radio FA 6000; JVC - Victor Company (ID = 2555773) Radio

Nivico 6 Band Transistor Radio FA 6000; JVC - Victor Company (ID = 2555774) Radio

Nivico 6 Band Transistor Radio FA 6000; JVC - Victor Company (ID = 2555775) Radio

Nivico 6 Band Transistor Radio FA 6000; JVC - Victor Company (ID = 2555776) Radio

Nivico 6 Band Transistor Radio FA 6000; JVC - Victor Company (ID = 2555777) Radio

Nivico 6 Band Transistor Radio FA 6000; JVC - Victor Company (ID = 2555778) Radio
Nivico 6 Band Transistor Radio FA 6000; JVC - Victor Company (ID = 535288) Radio Nivico 6 Band Transistor Radio FA 6000; JVC - Victor Company (ID = 535290) Radio
Nivico 6 Band Transistor Radio FA 6000; JVC - Victor Company (ID = 535289) Radio Nivico 6 Band Transistor Radio FA 6000; JVC - Victor Company (ID = 485260) Radio
Use red slider bar for more.
Nivico 6 Band Transistor Radio FA 6000; JVC - Victor Company (ID = 535288) Radio
JVC - Victor Company: Nivico 6 Band Transistor Radio FA 6000 [Radio] ID = 535288 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nivico 6 Band Transistor Radio FA 6000, JVC - Victor Company of Japan, Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  JVC - Victor Company of Japan, Ltd.; Tokyo
Year: 1964–1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: 2SA235 2SA235 2SA235 2SA234 2SA234 2SA234 2SA350 2SB75 2SB75 2SB156 2SB156 1N34A 1N34A 1N60 1N60
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Nivico 6 Band Transistor Radio FA 6000 - JVC - Victor Company of Japan,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 13.1875 x 10.4375 x 5.3125 inch / 335 x 265 x 135 mm
Notes

Nivico Model FA600 Portable Radio

Battery operated de luxe 11-transistor 6-band AM/FM portable radio designed for all-world reception. Housed in an attractive stainless steel cabinet, with a new-style frame antenna featuring a world map with time-table showing the local times of the various countries of the world.
Features: The frame antenna also has two rod antennas and an inbuilt ferrite core antenna ensuring reception of high sensitivity. This radio has separate tone control and is fitted with a dial light. Power output 700 mW.
Specifications: frequency range MW, 535-1605 kC/s (kHz); SW1, 2-4 MC/s (MHz); SW2, 4.75-10 MC/s (MHz); SW3 11.7-22 MC/s (MHz); LW, 150-400 kCs (kHz); FM, 87-108 MC/s (MHz). Speaker 4" x 6" dynamic. Batteries, 6 x UM1 (D Cells).

This model sold in Australia between 1964 & 1967 for £124/19/-. Price after the introduction of decimal currency in Australia (14/2/1966) was $249.90. Price & weight includes batteries.

Net weight (2.2 lb = 1 kg) 17 lb 12 oz (17.75 lb) / 8.059 kg
Source of data -- Collector info (Sammler)
Mentioned in Mingay's Radio Electrical Weekly Price Service (REWPS) (Feb 1964 to Feb 1967.)

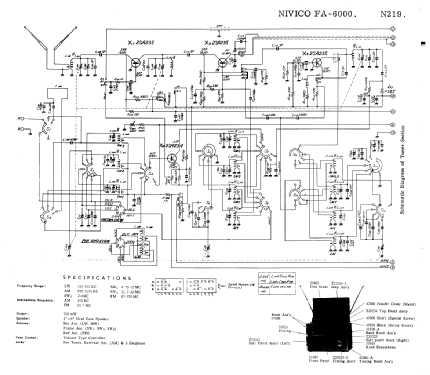

Literature/Schematics (1) J.R. Publications Transistor Radio Service Handbook (Group C1, 1964, Page N219. [Also at KevinChant.com])

Model page created by a member from A. See "Data change" for further contributors.
