• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 191745

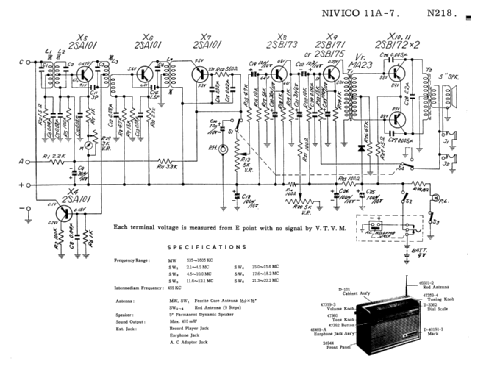

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Line / Batteries (any type) / AC 220 / 6 × UM-1 (size ASA) 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Nivico 11 Transistor 7 Band 11A-7 - JVC - Victor Company of Japan,

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• The Nivico model 11A-7 from JVC is a portable with the following bands: Broadcast (MW) 535 - 1605 kc, SW: 2.1 - 4.5 mc, 4.5 - 10 mc, 11.6 - 12.1 mc, 15 - 15.6 mc, 17.6 - 18.2 mc and 21.3 - 22.2 mc. The front reads: Nivico 11 Transistor 7 Band and the sticker shows model 11A-7. We don't know if every transistor is used as a transistor - or some as diodes. You see also a picture of the A.C. ADAPTOR to use it on 220 V.

• External source of data
• Guest Robert Thompson, UK

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
