• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 1971 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 278015

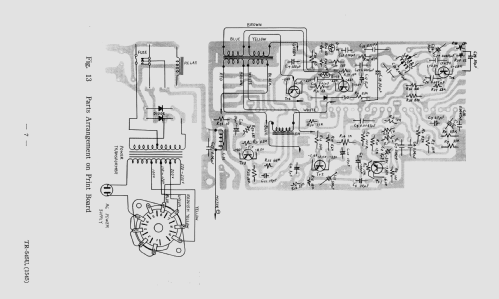

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Line / Batteries (any type) / 100; 110-120; 200; 220-230 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Nivico TR-545U - JVC - Victor Company of Japan,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 295 x 95 x 240 mm / 11.6 x 3.7 x 9.4 inch

• Notes

• Monitor-Schalter, Eingänge für: Aux, Mikrofon und Fernbedienung. Kopfhörer-Ausgang.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Author
• Model page created by Andreas Echtner. See "Data change" for further contributors.
