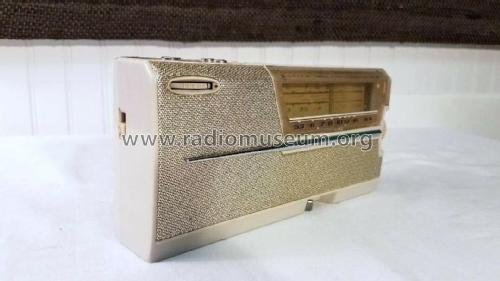

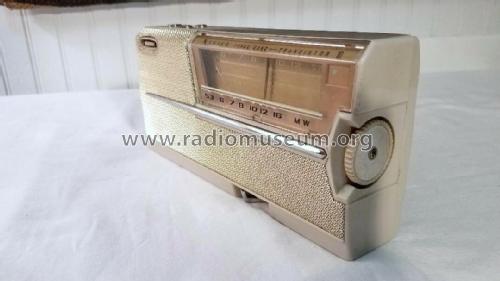

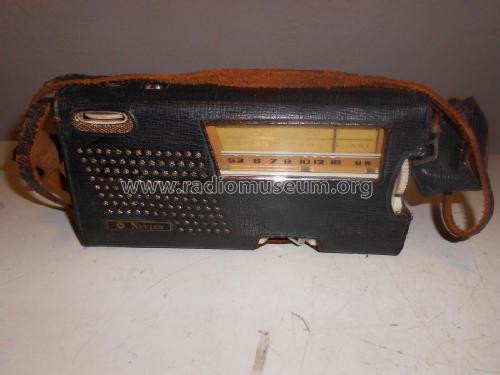

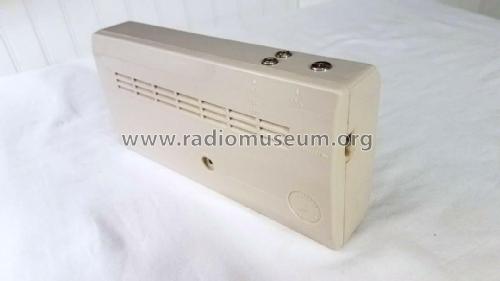

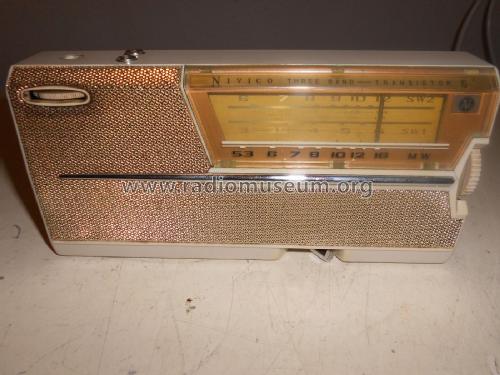

Nivico Three Band - Transistor 10 10TA-1S

Nivico Three Band - Transistor 10 10TA-1S; JVC - Victor Company (ID = 543186) Radio Nivico Three Band - Transistor 10 10TA-1S; JVC - Victor Company (ID = 543211) Radio
Nivico Three Band - Transistor 10 10TA-1S; JVC - Victor Company (ID = 543193) Radio Nivico Three Band - Transistor 10 10TA-1S; JVC - Victor Company (ID = 543201) Radio
Nivico Three Band - Transistor 10 10TA-1S; JVC - Victor Company (ID = 543205) Radio Nivico Three Band - Transistor 10 10TA-1S; JVC - Victor Company (ID = 644518) Radio
Nivico Three Band - Transistor 10 10TA-1S; JVC - Victor Company (ID = 644519) Radio Nivico Three Band - Transistor 10 10TA-1S; JVC - Victor Company (ID = 644520) Radio

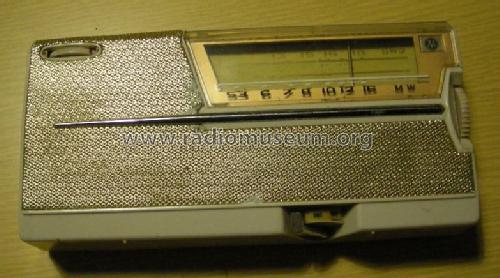

Nivico Three Band - Transistor 10 10TA-1S; JVC - Victor Company (ID = 1520498) Radio Nivico Three Band - Transistor 10 10TA-1S; JVC - Victor Company (ID = 1520499) Radio
Use red slider bar for more.
Nivico Three Band - Transistor 10 10TA-1S; JVC - Victor Company (ID = 543186) Radio
JVC - Victor Company: Nivico Three Band - Transistor 10 10TA-1S [Radio] ID = 543186 900x534
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nivico Three Band - Transistor 10 10TA-1S, JVC - Victor Company of Japan, Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  JVC - Victor Company of Japan, Ltd.; Tokyo
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: 2SA103 2SA103 2SA103 2SA101 2SA101 2SA101 2SB171 2SA171 2SB172 2SB172 MA23
schematic requested
Main principle Superhet with RF-stage; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Nivico Three Band - Transistor 10 10TA-1S - JVC - Victor Company of Japan,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 200 x 100 x 48 mm / 7.9 x 3.9 x 1.9 inch
Notes

Band 1: 530-1600 kHz, Band 2: 3-6 MHz, Band 3: 6-12 MHz. The internal ferrite rod antenna is wound for the two short-wave bands. Has "DX-Local" Switch.

MA23 transistor used as stabilizer diode. It is not counted as transistor.

Net weight (2.2 lb = 1 kg) 0.840 kg / 1 lb 13.6 oz (1.85 lb)

Model page created by Bryce Ringwood. See "Data change" for further contributors.
