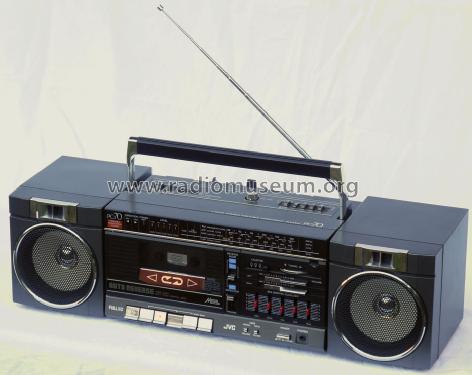

JVC - Victor Company: Portable Component System PC-70LD PC-R70LD PC-B70K [Radio] ID = 1003729 933x740
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable Component System PC-70LD PC-R70LD PC-B70K, JVC - Victor Company of Japan, Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  JVC - Victor Company of Japan, Ltd.; Tokyo
Year: 1986 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 110; 120; 240 / 8 x 1,5 / 12 Volt
Loudspeaker 2 Loudspeakers
Power out 8 W (unknown quality)
from Radiomuseum.org Model: Portable Component System PC-70LD PC-R70LD PC-B70K - JVC - Victor Company of Japan,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 505 x 150 x 175 mm / 19.9 x 5.9 x 6.9 inch

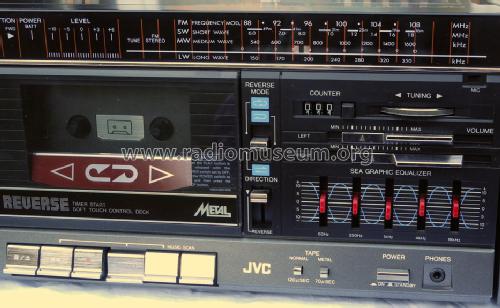

Notes Das JVC Portable Component System PC-70LD besteht aus dem Grundgerät PC-R70LD

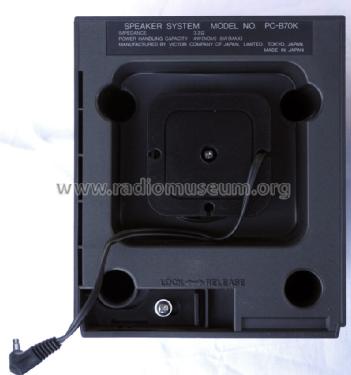

(Radio, Verstärker und Cassettenrecorder) und den abnehmbaren Lautsprechern PC-B70K.
Rundfunkteil:
UKW 87,5...108 MHz, KW 5,8...18,3 MHz, MW 530...1620 kHz, LW 147...360 kHz.
Verstärker:
Ausgangsleistung 2x 4 Watt an 3,2 Ω, 5-fach Klangregler "SEA Graphic Equalizer",
kanalgetrennte Lautstärkeregelung, schaltbarer externer Eingang (Cinch-Buchsen)
für Line oder Phono umschaltbar, Kopfhörer-Anschluss 3,5 mm Klinke.
Cassettenteil:
Autoreverse, Music Scan, Bandsorten-Umschalter für 70 oder 120 µs Entzerrung, 2 Mikrofon-Eingänge an Oberseite (3,5 mm Klinke), zusätzlich DIN 5-pol Buchse für Aufnahme/Wiedergabe an Rückseite.
Stromversorgung:
Batterie (8x UM-2 "C", Babyzelle), Netz oder ext. 12 V DC.
Leistungsaufnahme max. 18 W bei Netzbetrieb. FTZ-Prüfnr. 11/635.
Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)

Model page created by Bernhard Nagel. See "Data change" for further contributors.
