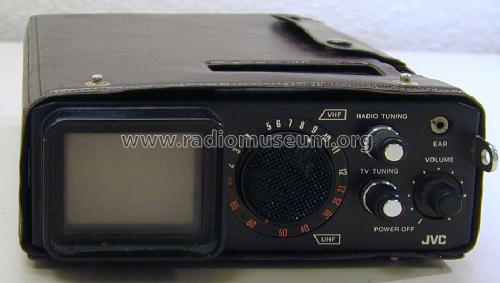

Radio Television P-100EUC

Radio Television P-100EUC; JVC - Victor Company (ID = 168628) TV Radio Radio Television P-100EUC; JVC - Victor Company (ID = 168629) TV Radio
Radio Television P-100EUC; JVC - Victor Company (ID = 212340) TV Radio Radio Television P-100EUC; JVC - Victor Company (ID = 212341) TV Radio
Radio Television P-100EUC; JVC - Victor Company (ID = 1493719) TV Radio Radio Television P-100EUC; JVC - Victor Company (ID = 1493720) TV Radio
Radio Television P-100EUC; JVC - Victor Company (ID = 1493721) TV Radio Radio Television P-100EUC; JVC - Victor Company (ID = 1493722) TV Radio
Radio Television P-100EUC; JVC - Victor Company (ID = 1493724) TV Radio Radio Television P-100EUC; JVC - Victor Company (ID = 1493725) TV Radio
Use red slider bar for more.
Radio Television P-100EUC; JVC - Victor Company (ID = 168628) TV Radio
JVC - Victor Company: Radio Television P-100EUC [TV Radio] ID = 168628 933x568
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radio Television P-100EUC, JVC - Victor Company of Japan, Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  JVC - Victor Company of Japan, Ltd.; Tokyo
Year: 1979 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 1: C205P4
Semiconductors (the count is only for transistors) 43:
schematic requested
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Other Combination - see Notes
Power type and voltage Line / Batteries (any type) / 220 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.8 cm = 1.5 inch
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: Radio Television P-100EUC - JVC - Victor Company of Japan,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 148 x 53 x 187 mm / 5.8 x 2.1 x 7.4 inch
Notes

Radio-MW und UKW, TV-Kombination. TV mit VHF/UHF-Empfang (EUR/UK), Bildschirmdiagonale 5 cm.

Ext. antenna socket, leather case, accu pack BC-100.

Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Price in first year of sale 52'800.00 Yen
Mentioned in - - Manufacturers Literature
Literature/Schematics (1) Funkschau (21/1978, S. 1029)

Model page created by Peter Böhm. See "Data change" for further contributors.
