• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 1990

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 147397

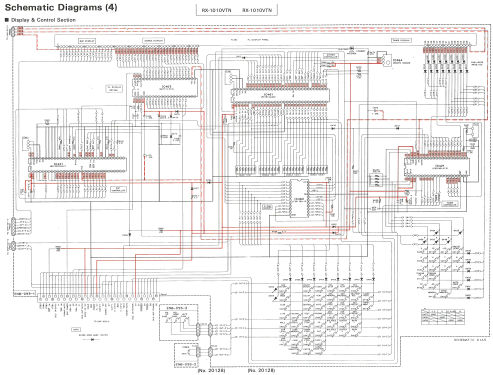

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 250 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: RX-1010VTN - JVC - Victor Company of Japan,

• Shape
• Book-shelf unit.

• Notes
• Fernbedienbarer AM/FM-4-Kanal-CSRP-Receiver mit programmierbarer LCD-Fernbedienung und Digital-Akustikprozessor.
  2-Kanalbetrieb: 2 x 120 Watt an 8 Ohm bei 1 kHz (DIN).
  4-Kanalbetrieb: 2 x 110 Watt (vorne), 2 x 15 Watt (hinten).
  Dolby Pro-Logic Surround mit digitaler Verzögerungsleitung.
  Gehäuseausführung: Titan-Finish.

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
