• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 1980

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 158256

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 240; 220; 110/15; 10 x 1,5 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

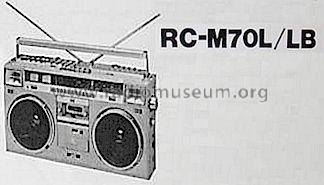

• Model: Stereo Radio Cassette Recorder RC-M70L - JVC - Victor Company of Japan,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 554 x 303 x 151 mm / 21.8 x 11.9 x 5.9 inch

• Notes
• JVC RC-M70L (RC-M70LB) 6 Band Stereo Radio Cassette Recorder;
  Boombox - Ghettoblaster,
  Tuner/Amp:
  FM: ~88 - 108 MHz,
  AM: ~540 - 1600 KHz,
  LW: 150 - 350 KHz,
  SW1: 2.3 - 6.0 MHz,
  SW2: 5.95 - 6.2 MHz,
  SW3: 6.0 - 18.0 MHz,
  fine tuning, 2 VU/battery & tuning meters, bass-, treble & loudness control, dial light, loudness, separate L + R volume control, mono/stereo switch, two telescopic antennas,
  Tape:
  tape counter, multi music scanner program with LED indicators, nor/CrO2/metal tape bias/eq, two built-in mics, rec. mute, full auto-stop,
  Terminals:
  RCA terminals for phono in with earth screw clamp, 2 x ext. mic. in, DIN I/O, DIN ext. speaker terminals, headphones jack, ext. antenna screw terminals, three step beat cut switch, ext. 15 VDC in,
  Finish: silver,
  suffix version B probably stands for British 240 V version?, 47 W power consumption, made in Japan.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
