• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 159592

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110; 220; 240 / D: 6 x 1,5 / 9 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 12 cm = 4.7 inch

• Power out
• 6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

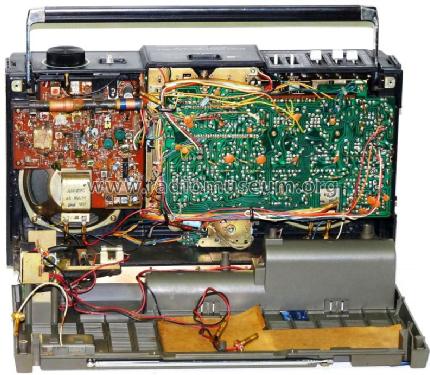

• Model: Stereo Radio Cassette Recorder RC-717L - JVC - Victor Company of Japan,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 410 x 220 x 114 mm / 16.1 x 8.7 x 4.5 inch

• Notes
• JVC RC-717L Stereo Radio Cassette Recorder;
  FM up to 108 MHz, SW: ~6 - 18 MHz, L + R volume control, tone control, two VU/batt./tuning meters, tape counter, CrO2 bias/eq, auto-stop, ALC Variable Sound Monitor, two swiveling mics, DIN I/O & ext. speaker terminals, 2 x mic. & rem. in jack ports, headphones front jack, beat cut switch, 11 W mains power consumption, made in Japan.

• Net weight (2.2 lb = 1 kg)
• 4.7 kg / 10 lb 5.6 oz (10.352 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
