• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 1978 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 185337

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110; 220; 240/ 12; 8 x 1,5 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

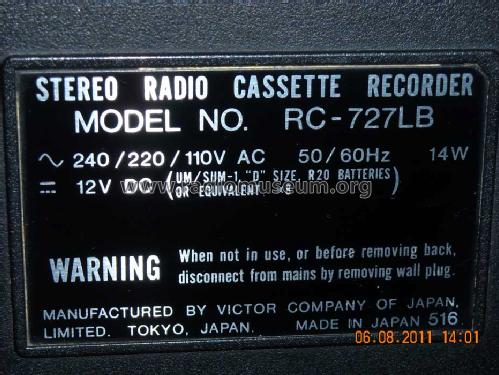

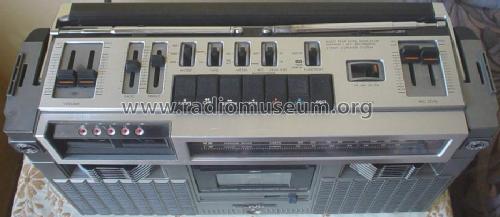

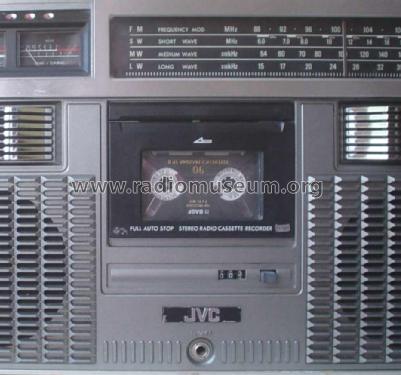

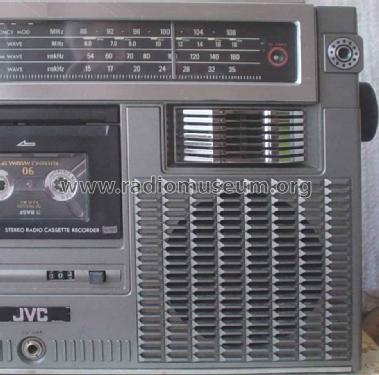

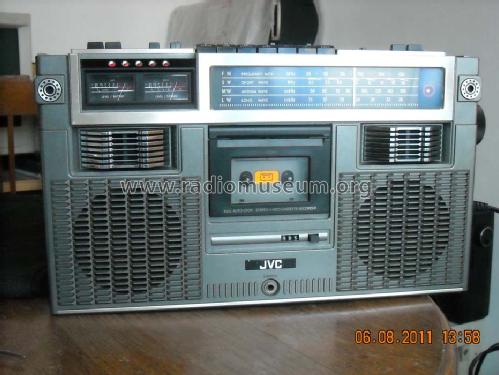

• Model: Stereo Radio Cassette Recorder RC-727L - JVC - Victor Company of Japan,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 446 x 260 x 124 mm / 17.6 x 10.2 x 4.9 inch

• Notes
• JVC RC-727L Stereo Radio Cassette Recorder;
  2 x 3.5 W, 16 & 5 cm speakers, bass & treble control, ALC, two signal meters.

• Net weight (2.2 lb = 1 kg)
• 5.7 kg / 12 lb 8.9 oz (12.555 lb)

• Mentioned in
• - - Manufacturers Literature (JVC Radio-Kassetten-Rekorder ~1978?)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
