Stereo Radio Cassette Recorder RC-727W

JVC - Victor Company of Japan, Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1977–1979
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 328295

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 110; 220; 240 / D: 8 x 1,5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 4 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereo Radio Cassette Recorder RC-727W - JVC - Victor Company of Japan,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 446 x 260 x 124 mm / 17.6 x 10.2 x 4.9 inch
  • Notes

  • Wellenbereiche: hier zwei Kurzwellenbänder 120 m bis 16 m durchgängig ! Zwei Mittelton- Bass-Laustsprecher Durchmesser 16 cm und 2 Hochtöner Durchmesser ca 5 cm.  Zwei Mikrofone eingebaut. Neben Stereo- auch eine Wide- Funktion. siehe auch die Dateninformation in Englisch.

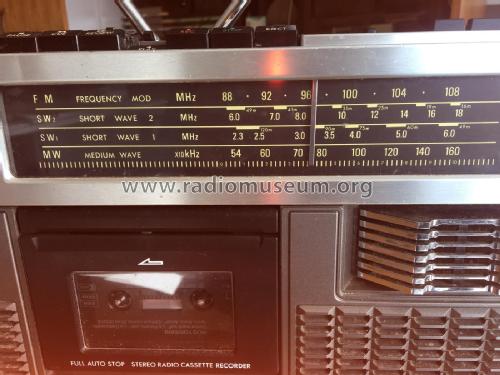

    Wave ranges: two short-wave bands 120 m to 16 m continuously! Two mid-range bass loudspeakers with a diameter of 16 cm and two tweeters with a diameter of approx. 5cm. Two microphones built in. In addition to stereo, there is also wide function.





  • Net weight (2.2 lb = 1 kg)
  • 5.1 kg / 11 lb 3.7 oz (11.233 lb)
  • Price in first year of sale
  • 315.00 AUS $
  • Author
  • Model page created by Wolfgang Lill. See "Data change" for further contributors.
