• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 1983

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 256452

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

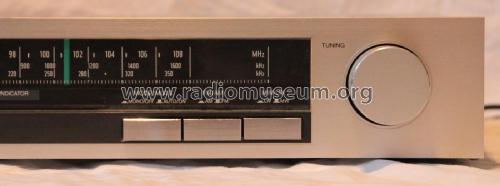

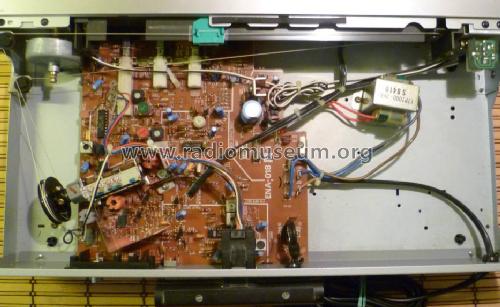

• Model: FM/MW/LW Stereo Tuner T-K100L - JVC - Victor Company of Japan,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 435 x 77 x 275 mm / 17.1 x 3 x 10.8 inch

• Notes

• Colour: Silver (Silber)

  See also the JVC T-K100LB FM/MW/LW Stereo Tuner which is housed in a black case.

• Source of data
• - - Manufacturers Literature

• Mentioned in
• -- Original prospect or advert (1983 JVC High Fidelity Product catalogue)

• Literature/Schematics (2)
• - - Manufacturers Literature (Instruction manual JVC T-K100/T-K100B/T-K100L/T-K100LB)

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.

• Other Models

• Here you find 975 models, 856 with images and 141 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from JVC - Victor Company of Japan, Ltd.; Tokyo
