Multimeter SK-100

Multimeter SK-100; Kaise electric (ID = 899209) Equipment
Multimeter SK-100; Kaise electric (ID = 777850) Equipment Multimeter SK-100; Kaise electric (ID = 777851) Equipment
Multimeter SK-100; Kaise electric (ID = 777852) Equipment
Use red slider bar for more.

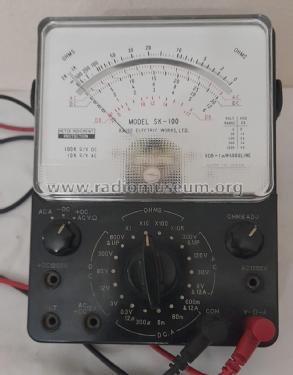

Multimeter SK-100; Kaise electric (ID = 777850) Equipment
Kaise electric: Multimeter SK-100 [Equipment] ID = 777850 590x722
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multimeter SK-100, Kaise electric works ltd , Ueda City, Nagano pre

Country:  Japan
Manufacturer / Brand:  Kaise electric works ltd , Ueda City, Nagano pre
Year: 1970 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / 2 x 1,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Multimeter SK-100 - Kaise electric works ltd ,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 132 x 65 x 180 mm / 5.2 x 2.6 x 7.1 inch
Notes Multimeter:
Ohm: x1 - x10000
DC: 0,3 - 600 V, 1200 V (100 kOhm/V)
AC: 6 - 300 V, 1200 V (10 kOhm/V)
DC: 0,050 - 250 mA, 12 A
AC: 12 A.
Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)
Source of data - - Data from my own collection

Model page created by Jouko Laukkanen. See "Data change" for further contributors.
