• Country
• Germany

• Manufacturer / Brand
• Kaiser Electronic GmbH; Heidelberg

• Year
• 1977 ?

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 164211

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 / 13,8 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Mobilfunkgerät KA9018LS - Kaiser Electronic GmbH;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 135 x 40 x 185 mm / 5.3 x 1.6 x 7.3 inch

• Notes

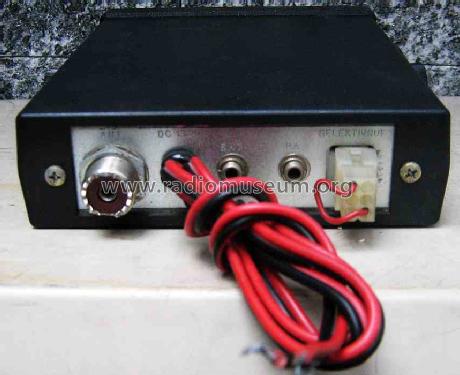

• Mobilfunkgerät KA9018LS, (Spitzname Giftzwerg), Frequenzbereich 27 MHz CB-Funk, 12 Kanäle in AM-Modulation und 0,5 Watt Sendeleistung, weitere Funktionen: externe Lautsprecherbuchse und PA-Lautsprecher, sechspolige Buchse für Stabo Selektivruf-Gerät, Rauschsperre (ANL), Rauschunterdrückung (NB), DX-Local-Schalter, Durchsageverstärker (PA).

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Mentioned in
• Funkschau (18/1978 S. 873)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
