PLL FM/FML/MW/SW Synthesized Receiver KA1101

Kaito Electronics Inc.; Montclair (CA)

  • Year
  • 1988 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 233402

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, more than 2 SW bands plus FM or UHF.
  • Details
  • Radio with other functions
  • Power type and voltage
  • Batteries / addl. power jack / 4 x 1,5 / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: PLL FM/FML/MW/SW Synthesized Receiver KA1101 - Kaito Electronics Inc.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 138 x 85 x 27 mm / 5.4 x 3.3 x 1.1 inch
  • Notes

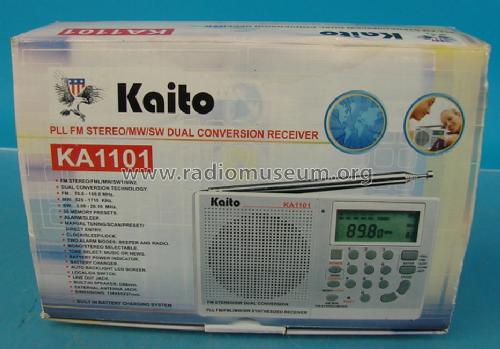

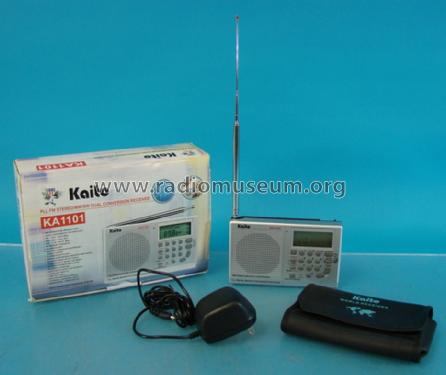

  • Kaito FM Stereo/SW Dual Conversion PLL FM/FML/MW/SW Synthesized Receiver Model KA1101.

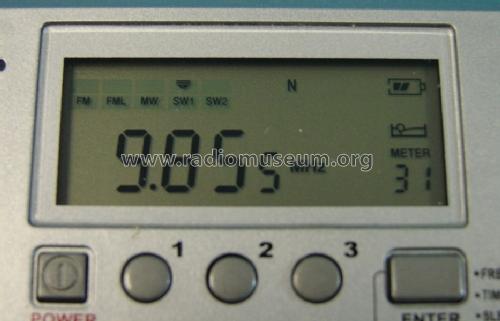

    FM 70 -108 MHz, MW 520 - 1710 kHz, SW 3.00 - 26.10 MHz.
    50 Memory Presets.
    Built in Battery charging System and Alarm Clock. Two Alarm Modes: Beeper and Radio.
    Line Out jack, external antenna jack.

  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
