Nejva {Нейва} [Neywa] 401

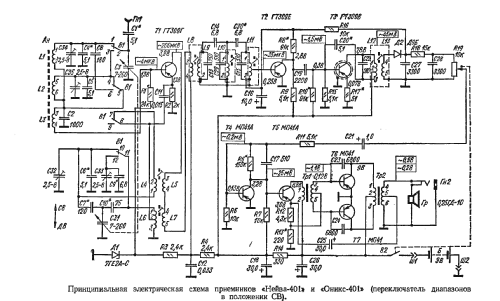

![Nejva {Нейва} [Neywa] 401; Kamensk-Uralsk Radio (ID = 1455118) Radio](/images/schema/preview/s/su_kamensk_ur_nejva_401_sch1.png)
![Nejva {Нейва} [Neywa] 401; Kamensk-Uralsk Radio (ID = 926068) Radio](/images/model/klein/s/su_neywa401_front.jpg)
![Nejva {Нейва} [Neywa] 401; Kamensk-Uralsk Radio (ID = 1519303) Radio](/images/model/klein/d/dsc_6605.jpg)
![Nejva {Нейва} [Neywa] 401; Kamensk-Uralsk Radio (ID = 1712186) Radio](/images/model/klein/_/0_1226.jpg)
Use red slider bar for more.
![Nejva {Нейва} [Neywa] 401; Kamensk-Uralsk Radio (ID = 926068) Radio](/images/radio/kamensk_uralsk_radio/nejva_neywa_401_926068.jpg "Kamensk-Uralsk Radio Nejva {Нейва} [Neywa] 401 from Heiko Harry Hacker (1)")
Kamensk-Uralsk Radio: Nejva {Нейва} [Neywa] 401 [Radio] ID = 926068 933x614
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1972 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 7: ГТ309 ГТ309 ГТ309 МП41 МП41 МП41 МП41 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 465 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Dry Batteries / 9 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch |
| Power out | 0.2 W (undistorted) |
| from Radiomuseum.org | Model: Nejva {Нейва} [Neywa] 401 - Kamensk-Uralsk Radio Works |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 130 x 80 x 40 mm / 5.1 x 3.1 x 1.6 inch |
| Notes | Portable receiver for LW and MW. Ear phone jack. See also export version Comix 401. |
Model page created by Giuseppe Duello. See "Data change" for further contributors.
