• Country
• Japan

• Manufacturer / Brand
• Kanda Tsushin Kogyo Co., LTD.; Tokyo

• Year
• 1975 ??

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 263970

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Transceiver; ZF/IF 455 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12,6-13,8 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3.5 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org

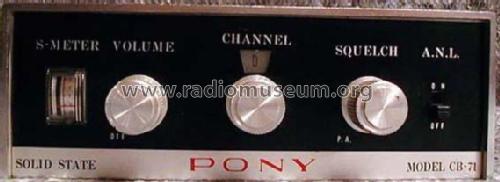

• Model: Pony Transceiver CB-71 - Kanda Tsushin Kogyo Co., LTD.;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 158 x 96 x 154 mm / 6.2 x 3.8 x 6.1 inch

• Net weight (2.2 lb = 1 kg)
• 2.250 kg / 4 lb 15.3 oz (4.956 lb)

• Literature/Schematics (1)
• Antique Radio Magazine - Italy, Club Antique Radio Magazine

• Author
• Model page created by Stefano Cerchi. See "Data change" for further contributors.

• Other Models

• Here you find 12 models, 11 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Kanda Tsushin Kogyo Co., LTD.; Tokyo
