Anita, Anitech,: Anitech WR 100 [Radio] ID = 2127660 1288x868
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1988 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Main principle | Superheterodyne (common); ZF/IF 455/10700 kHz |
|---|---|
| Wave bands | Broadcast, Long Wave, more than 2 x SW plus FM or UHF. |
| Details | |
| Power type and voltage | Dry Batteries / AA: 4 x 1.5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch |
| Power out | |
| from Radiomuseum.org | Model: Anitech WR 100 - Anita, Anitech, Anitone Marken |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 180 x 120 x 37 mm / 7.1 x 4.7 x 1.5 inch |

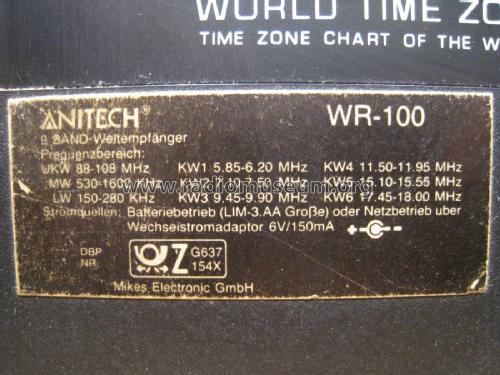

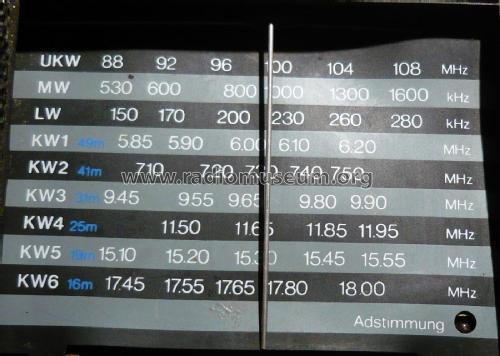

| Notes | ANTITECH WR-100 FM/MW/LW/KW 1-6 Transistorradio, Trageriemen, 9-Band Weltempfänger, KW: 6 gespreizte Rundfunk-Bänder 49, 41, 31, 25, 19 und 16m im Bereich von 5,85-18MHz. DBP Nr. : Z G637 154X |
| Net weight (2.2 lb = 1 kg) | 0.380 kg / 0 lb 13.4 oz (0.837 lb) |
Model page created by Manuel Albano Neves. See "Data change" for further contributors.
