Tautofonas

Tautofonas ; Karadi, Kaunas (ID = 709805) Radio
Tautofonas ; Karadi, Kaunas (ID = 692903) Radio Tautofonas ; Karadi, Kaunas (ID = 692909) Radio
Tautofonas ; Karadi, Kaunas (ID = 692907) Radio Tautofonas ; Karadi, Kaunas (ID = 75838) Radio
Tautofonas ; Karadi, Kaunas (ID = 692905) Radio Tautofonas ; Karadi, Kaunas (ID = 692910) Radio
Tautofonas ; Karadi, Kaunas (ID = 692911) Radio Tautofonas ; Karadi, Kaunas (ID = 714317) Radio
Tautofonas ; Karadi, Kaunas (ID = 714318) Radio
Use red slider bar for more.

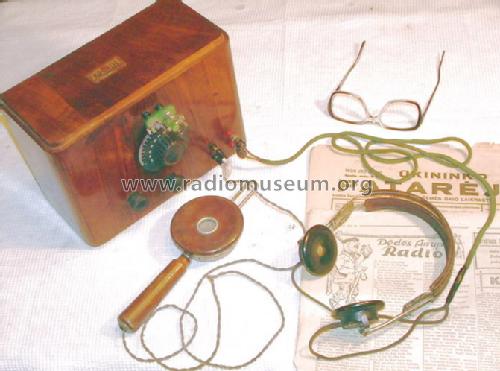

Tautofonas ; Karadi, Kaunas (ID = 692903) Radio
Karadi, Kaunas: Tautofonas [Radio] ID = 692903 705x570
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tautofonas, Karadi, Kaunas:
Kaunas Lithuania

Country:  Lithuania (Lithuania, Vilnius)
Manufacturer / Brand:  Karadi, Kaunas
Year: 1935–1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 1: U107D
Main principle TRF with regeneration
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker
Power out
from Radiomuseum.org Model: Tautofonas - Karadi, Kaunas
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 260 x 183 x 125 mm / 10.2 x 7.2 x 4.9 inch
Notes Wellenbereiche: lang: 800...2000 M., mittel: 200...600 M., kurz: 19...50 M.
Possible to use this radio as simple crystal radio without battery. The red earphones sockets for that purpose and crystal detector must be connect.
Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)
Price in first year of sale 59.00 Lt
Mentioned in -- Original prospect or advert

Model page created by Sigitas Zilionis. See "Data change" for further contributors.



All listed radios etc. from Karadi, Kaunas
Here you find 17 models, 17 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
