Zimmerantenne 103

Zimmerantenne 103; Kathrein; Rosenheim (ID = 99910) Antenna Zimmerantenne 103; Kathrein; Rosenheim (ID = 99911) Antenna
Zimmerantenne 103; Kathrein; Rosenheim (ID = 99912) Antenna
Use red slider bar for more.

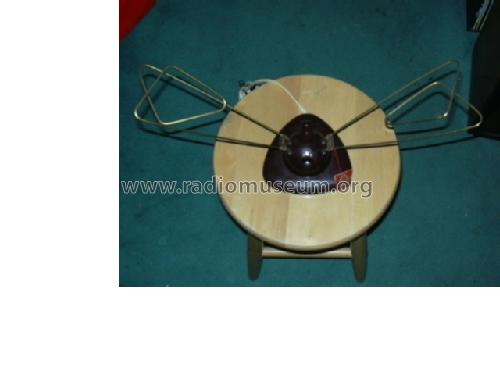

Zimmerantenne 103; Kathrein; Rosenheim (ID = 99910) Antenna
Kathrein; Rosenheim: Zimmerantenne 103 [Antenna] ID = 99910 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Zimmerantenne 103, Kathrein; Rosenheim

Country:  Germany
Manufacturer / Brand:  Kathrein; Rosenheim
Year: 1955 ?? Category: Antenna (Aerial) or Coupler
Wave bands Wave Bands given in the notes.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Zimmerantenne 103 - Kathrein; Rosenheim
Material Bakelite case
Dimensions (WHD) 470 x 210 x 140 mm / 18.5 x 8.3 x 5.5 inch
Notes Zimmerantenne, Art Faltdipol auf Bakelitfuß. Vermutlich für UKW (Evtl. später für FS-Bänder II/III?).
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Ralf Plaga. See "Data change" for further contributors.
