• Country
• Germany

• Manufacturer / Brand
• Kathrein; Rosenheim

• Year
• 1973 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 258134

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Batteries / addl. power jack / D: 9 x 1,5 / ? Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

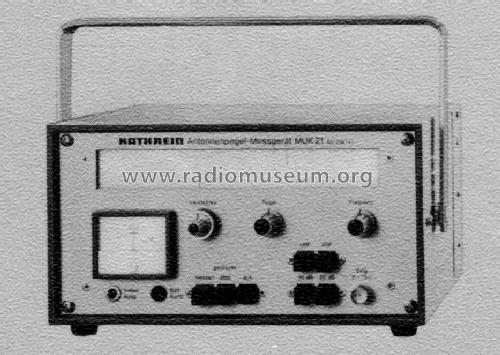

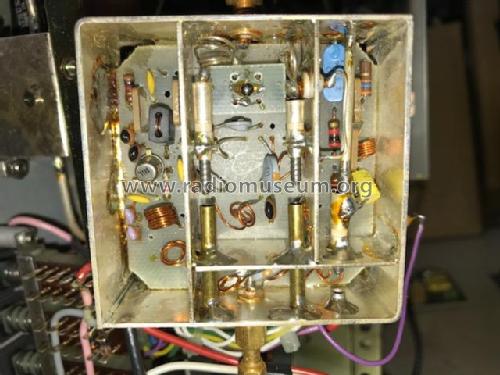

• Model: Antennenpegel-Meßgerät MUK 21 BN 208.121 - Kathrein; Rosenheim

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 260 x 135 x 200 mm / 10.2 x 5.3 x 7.9 inch

• Notes

• Antennenpegel-Meßgerät VHF/UHF, 47-300 MHz, 470-860 Mhz,

  Meßbereich: 34-120 dBµV, Meßfehler max. + - 2 dB.

  Externe Speisung möglich über Stromversorgungseinheit MNK 01.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• Funk-Technik (FT) (21/1973, S. 805 / Messebericht Berlin)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
