DVB-S-Receiver UFD 170 BN 20210063

DVB-S-Receiver UFD 170 BN 20210063; Kathrein; Rosenheim (ID = 1805827) DIG/SAT

DVB-S-Receiver UFD 170 BN 20210063; Kathrein; Rosenheim (ID = 1805828) DIG/SAT

DVB-S-Receiver UFD 170 BN 20210063; Kathrein; Rosenheim (ID = 1805829) DIG/SAT
DVB-S-Receiver UFD 170 BN 20210063; Kathrein; Rosenheim (ID = 1805825) DIG/SAT DVB-S-Receiver UFD 170 BN 20210063; Kathrein; Rosenheim (ID = 1805826) DIG/SAT
Use red slider bar for more.

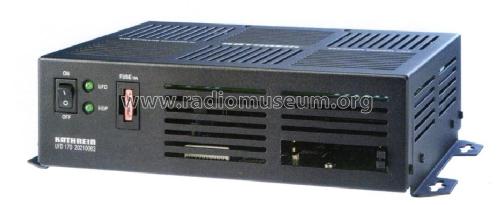

DVB-S-Receiver UFD 170 BN 20210063; Kathrein; Rosenheim (ID = 1805825) DIG/SAT
Kathrein; Rosenheim: DVB-S-Receiver UFD 170 BN 20210063 [DIG/SAT] ID = 1805825 933x383
Select picture or schematic to display from thumbnails on the right and click for download.
For model DVB-S-Receiver UFD 170 BN 20210063, Kathrein; Rosenheim:

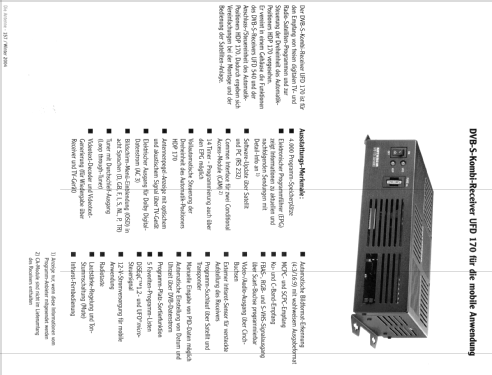

Kundenzeitschrift 'Die Antenne' Ausgabe 157 Winter 2004

Country:  Germany
Manufacturer / Brand:  Kathrein; Rosenheim
Year: 2004 Category: Digital terrestrial, Internet and SAT receiver (also analogue)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands SAT-IF
Details Radio Control (+Remote Wire etc)
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: DVB-S-Receiver UFD 170 BN 20210063 - Kathrein; Rosenheim
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 235 x 70 x 185 mm / 9.3 x 2.8 x 7.3 inch
Notes

Mobiler DVB-S-Receiver mit Steuerung des automatischen Positioners HDP 170,

950-2150 MHz

4000 Programmspeicher,

OSD in 8 Sprachen,

IR-Fernsteuerung.









Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Mentioned in -- Original prospect or advert (Kathrein Kundenzeitschrift die Antenne Nr. 157 Winter 2004)

Model page created by a member from D. See "Data change" for further contributors.
