F 1-TV-Antenne RECTA-D AVF 02 BN 211.152

F 1-TV-Antenne RECTA-D AVF 02 BN 211.152; Kathrein; Rosenheim (ID = 1719702) Antenna

F 1-TV-Antenne RECTA-D AVF 02 BN 211.152; Kathrein; Rosenheim (ID = 1719703) Antenna

F 1-TV-Antenne RECTA-D AVF 02 BN 211.152; Kathrein; Rosenheim (ID = 1719705) Antenna
F 1-TV-Antenne RECTA-D AVF 02 BN 211.152; Kathrein; Rosenheim (ID = 1719701) Antenna
Use red slider bar for more.
F 1-TV-Antenne RECTA-D AVF 02 BN 211.152; Kathrein; Rosenheim (ID = 1719701) Antenna
Kathrein; Rosenheim: F 1-TV-Antenne RECTA-D AVF 02 BN 211.152 [Antenna] ID = 1719701 686x334
Select picture or schematic to display from thumbnails on the right and click for download.
For model F 1-TV-Antenne RECTA-D AVF 02 BN 211.152, Kathrein; Rosenheim:

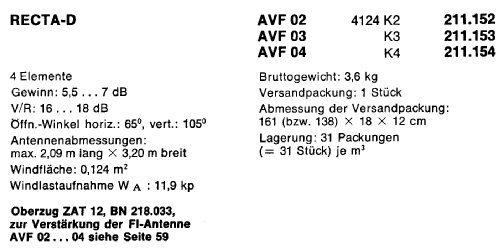

Abbildung im Kathrein Katalog 1973/74

Country:  Germany
Manufacturer / Brand:  Kathrein; Rosenheim
Year: 1973 ?? Category: Antenna (Aerial) or Coupler
Wave bands Wave Bands given in the notes.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: F 1-TV-Antenne RECTA-D AVF 02 BN 211.152 - Kathrein; Rosenheim
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 2090 x 3200 x 0 mm / 82.3 x 126 x 0 inch
Notes

F 1 Kanalantenne,

1 Kanal (K2,K3,K4) im F 1 Bereich (47-68 MHz),

K2= AVF 02, K3= AVF 03, K4= AVF 04,

Gewinn: 5,5-7 dB, V/R: 16-18 dB.

Mentioned in -- Original prospect or advert
