F 3 Bereichantenne AVF 16 BN 211.307

F 3 Bereichantenne AVF 16 BN 211.307; Kathrein; Rosenheim (ID = 1719720) Antenna

F 3 Bereichantenne AVF 16 BN 211.307; Kathrein; Rosenheim (ID = 1719721) Antenna

F 3 Bereichantenne AVF 16 BN 211.307; Kathrein; Rosenheim (ID = 1719722) Antenna
F 3 Bereichantenne AVF 16 BN 211.307; Kathrein; Rosenheim (ID = 1719719) Antenna
Use red slider bar for more.
F 3 Bereichantenne AVF 16 BN 211.307; Kathrein; Rosenheim (ID = 1719719) Antenna
Kathrein; Rosenheim: F 3 Bereichantenne AVF 16 BN 211.307 [Antenna] ID = 1719719 650x335
Select picture or schematic to display from thumbnails on the right and click for download.
For model F 3 Bereichantenne AVF 16 BN 211.307, Kathrein; Rosenheim:

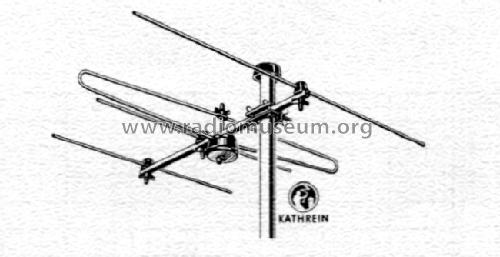

Abbildung im Kathrein Katalog 1973/74

Country:  Germany
Manufacturer / Brand:  Kathrein; Rosenheim
Year: 1973 ?? Category: Antenna (Aerial) or Coupler
Wave bands Wave Bands given in the notes.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: F 3 Bereichantenne AVF 16 BN 211.307 - Kathrein; Rosenheim
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 590 x 830 x 0 mm / 23.2 x 32.7 x 0 inch
Notes

F 3 Bereichantenne für die Kanäle 5-12, 174-230 MHz.

Gewinn: 5-6,5 dB, V/R: 14-17 dB.

Mentioned in -- Original prospect or advert

Model page created by a member from D. See "Data change" for further contributors.
