Fernseh-Zimmerantenne BZX 30

Fernseh-Zimmerantenne BZX 30; Kathrein; Rosenheim (ID = 646777) Antenna Fernseh-Zimmerantenne BZX 30; Kathrein; Rosenheim (ID = 646778) Antenna
Use red slider bar for more.
Fernseh-Zimmerantenne BZX 30; Kathrein; Rosenheim (ID = 646777) Antenna
Kathrein; Rosenheim: Fernseh-Zimmerantenne BZX 30 [Antenna] ID = 646777 750x606
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fernseh-Zimmerantenne BZX 30, Kathrein; Rosenheim
Country:  Germany
Manufacturer / Brand:  Kathrein; Rosenheim
Year: 1985 ?? Category: Antenna (Aerial) or Coupler
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Radio Frequency Amplification only
Wave bands Wave Bands given in the notes.
Power type and voltage Line / Batteries (any type) / ~220 ; = 12 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Model: Fernseh-Zimmerantenne BZX 30 - Kathrein; Rosenheim
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 300 x 300 x 110 mm / 11.8 x 11.8 x 4.3 inch

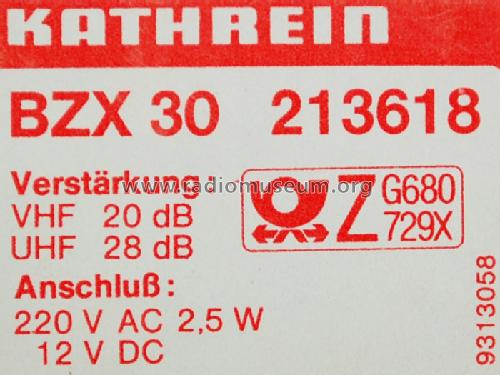

Notes Kathrein Fernseh-Zimmerantenne BZX 30 mit integriertem Signal-Verstärker (VHF, 20 dB / UHF, 28 db). Anschluß für externe Antenne und 12 Volt-Anschluß für externe Spannungsversorgung.
Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)

Model page created by Jürgen Küting. See "Data change" for further contributors.
